ECO series (Glass column) 低中壓型玻璃管柱
YMC ECO玻璃管柱適用於各種類型之膠體(Soft gel/Resin)和低~中壓(壓力上限5~30bar)液相層析之應用。可選擇一端或兩端可調式活塞(pistons)進行填充。類型可分為兩種版本：AB型 (水相, aqueous buffer)，適用於水相緩衝液和冷房(cool room)應用。以及SR型 (耐溶劑型, solvent resistant)適用於各種正相、逆相層析應用。並可根據客戶需求選配加熱/冷卻夾套。
特點

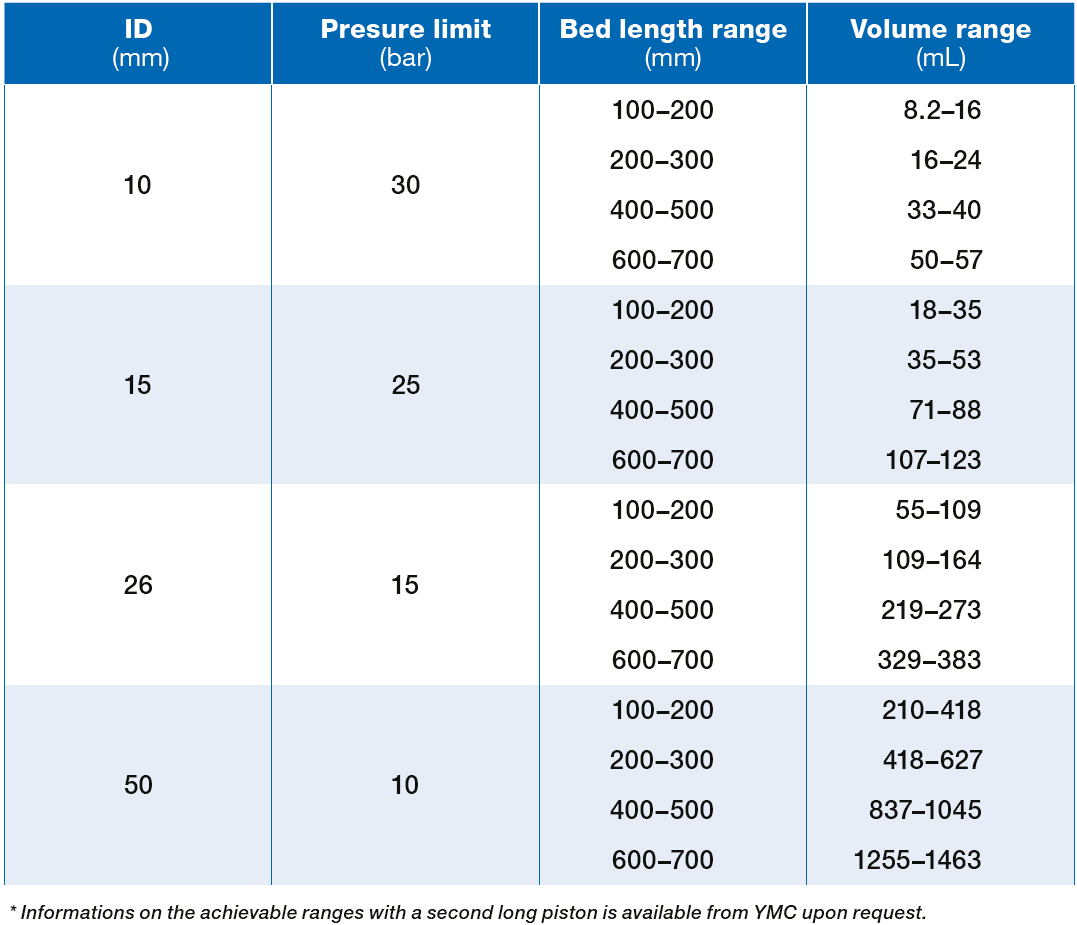

-內徑提供多種選擇：10, 15, 25, 50, 70, 80mm
-玻璃管柱長度：120, 200, 450, 750, 1000 mm，填充長度可自由調整，
-生物相容(Biocompatible)
-操作簡單，並可於低溫環境下操作
-可選配夾套進行溫度控制，說明
-篩版(Frit)材質可選擇，並固定在柱塞內，避免使用濾網(Nets)可能在調整柱塞時脫落
-管線可自由隨時更換，不須卸除樹脂

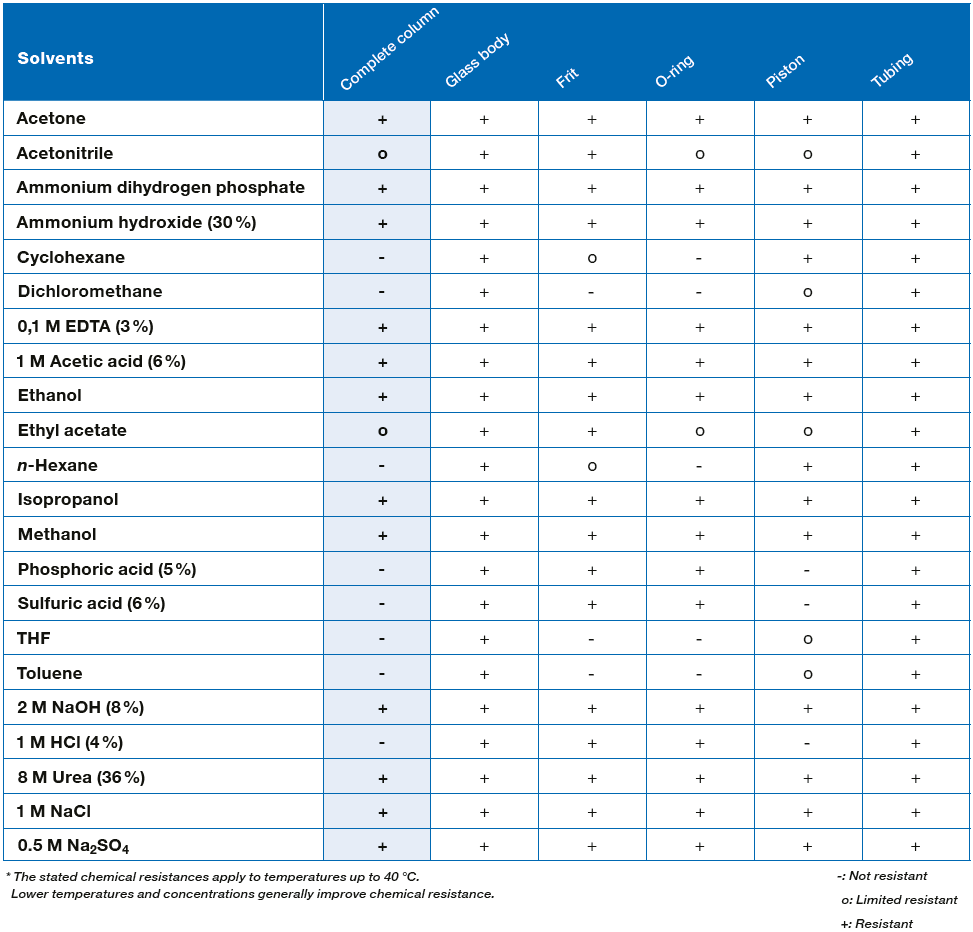

-接液材質化學耐受性佳，並可接受客製化材質訂製(價格實惠)
*接受少量試用申請中
影片介紹

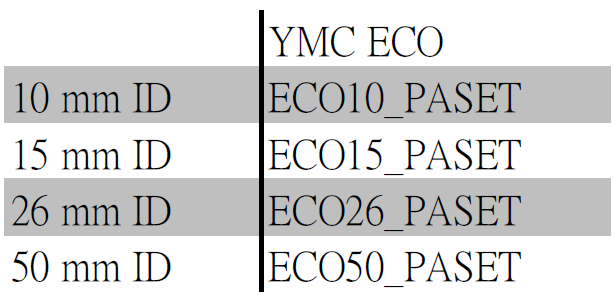

Packing Adapters
Packing adapters are used if the packing method required additional column volume during the packing process. The ECO series packing adapters consist of a column coupler and an empty glass body. These must be of the same diameter as the column to be packed and must be used as packing adapters, not for extending the length of a column body during use.
Column Stand
A column stand is available for ECO columns with 50, 70 and 80 mm ID.
Handling Loop
This tool helps you to open and close YMC glass columns. The Handling-Loop is universally applicable to all available inner diameters.
-Simplified opening of glass columns
-Universally applicable
-Easy grip especially with larger inner diameters
Product Information
| Title | Document Type | Download |
|---|---|---|
| YMC ECO Glass Column Overview | Brochure | Download |
| Packing a 10 mm ID column with BioPro IEX SmartSep S30 | Expert Tip | Download |
| Glass Column Packing Service by YMC | Flyer | Download |
| Optimum Column Positioning with ECO Column Stands! | Flyer | Download |
| Manual ECO Glass Columns | Manual | 請聯繫我們索取資料 |
| Manual Handling-Loop for YMC Glass Columns | Manual | 請聯繫我們索取資料 |
| Step-by-Step Guide to Packing Lab Scale Glass Columns | Manual | 請聯繫我們索取資料 |
| YMC Glass Columns for Lab and Pilot Scale | Overview | Download |
| How to pack a glass column with soft gels | Poster | Download |
| Handling-Loop for YMC Glass Columns | Product Information | Download |
| Questionnaire for YMC Glass Columns (Lab and Pilot Scale) | Questionnaire | Download |
| Cleaning and Cleaning Validation of Glass Columns Laboratory and Pilot Scale | Whitepaper | 請聯繫我們索取資料 |
