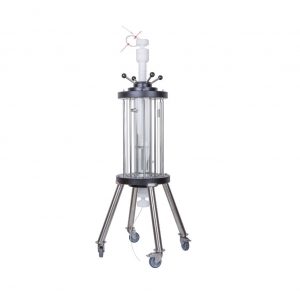

YMC Pilot Column 純化玻璃管柱
YMC Pilot製備級中低壓玻璃管柱適用於試量產、生產規模之純化。類型可分為兩種版本：AB型 (水相, aqueous buffer)，適用於水相緩衝液。SR型 (耐溶劑型, solvent resistant)適用於有機溶劑之應用。可應用在生物樣品純化(例如：蛋白質(proteins)、Peptide(胜肽)、核酸(nucleic acids…等)、正相層析、逆相層析、離子交換、分子篩…等液相層析純化之應用。
除了標準尺寸規格外，可依照客戶需求提供客製化規格。對於需要進行溫度控制之應用，YMC Pilot製備級中低壓玻璃管柱可提供玻璃加熱/冷卻夾套設計。
Features
-Biocompatible and ideal for use in purification of biotechnology-based pharmaceuticals such as proteins and peptides, etc.
-Unique frit design enables reduced losses in diffusion and uniform performance
-Easy scale-up, having the same structure and operability across different column sizes
-Packing bed height easily adjustable by hand wheeled adjusters
-Compliance with IQ/OQ validation and FDA regulations
-Various options available
| Parameter | Standard Columns |
| Inner Diameters [mm] | 100, 140, 200, 300 |
| Bed Lenghts [mm] | 500, 850 |
| Pressure Range [bar] | 10 – 3 |
| Temperature Range [°C] | 4 – 40 |
Packing adapters
Packing adapters are used if the packing method requires additional column volume during the packing process. More volume than given by the column alone may be required when the column is packed with the slurry method. A suspension of material and packing solvent in a concentration of approximately 30 – 50% is used, depending on the packing material. The additional packing solvent above the finished column bed will be removed later but during the packing process the packing adapter gives the additional volume which is required for this method.
| Title | Document Type | Download |
|---|---|---|
| YMC-Pilot Glass Columns | Brochure | Download |
| Manual Rotatable YMC-Pilot Column | Manual | 請聯繫我們索取資料 |
| Manual YMC-Pilot Column | Manual | 請聯繫我們索取資料 |
| YMC Glass Columns for Lab and Pilot Scale | Overview | Download |
| How to pack a glass column with soft gels | Poster | Download |
| Questionnaire for YMC Glass Columns (Lab and Pilot Scale) | Questionnaire | Download |
| Cleaning and Cleaning Validation of Glass Columns Laboratory and Pilot Scale | Whitepaper | 請聯繫我們索取資料 |
