ECOPLUS series (Glass column) 中高壓型玻璃管柱
ECOPLUS 玻璃管柱為一多功能型層析管柱，即使在較高之壓力下也可適用於生物樣品純化(例如：蛋白質(proteins)、Peptide(胜肽)、核酸(nucleic acids…等)、正相層析、逆相層析之液相層析純化之應用。操作上設計了快鎖式設計(Quick-lock)，使操作更為簡單便利。出廠前會經過多次嚴格之品質監控，以提供高品質之產品。
類型可分為兩種版本：
-AB型 (水相, aqueous buffer)，適用於水相緩衝液
-SR型 (耐溶劑型, solvent resistant)適用於有機溶劑之應用。
活塞(piston)有兩種長度可供選擇，可變化出三種組合，可自由調整各種柱床長(Bed Lengths)和容積(Volumes)。SR型活塞密封之設計為特氟龍(Teflon)V形密封塞，AB型活塞密封之設計為O-rings。
特點

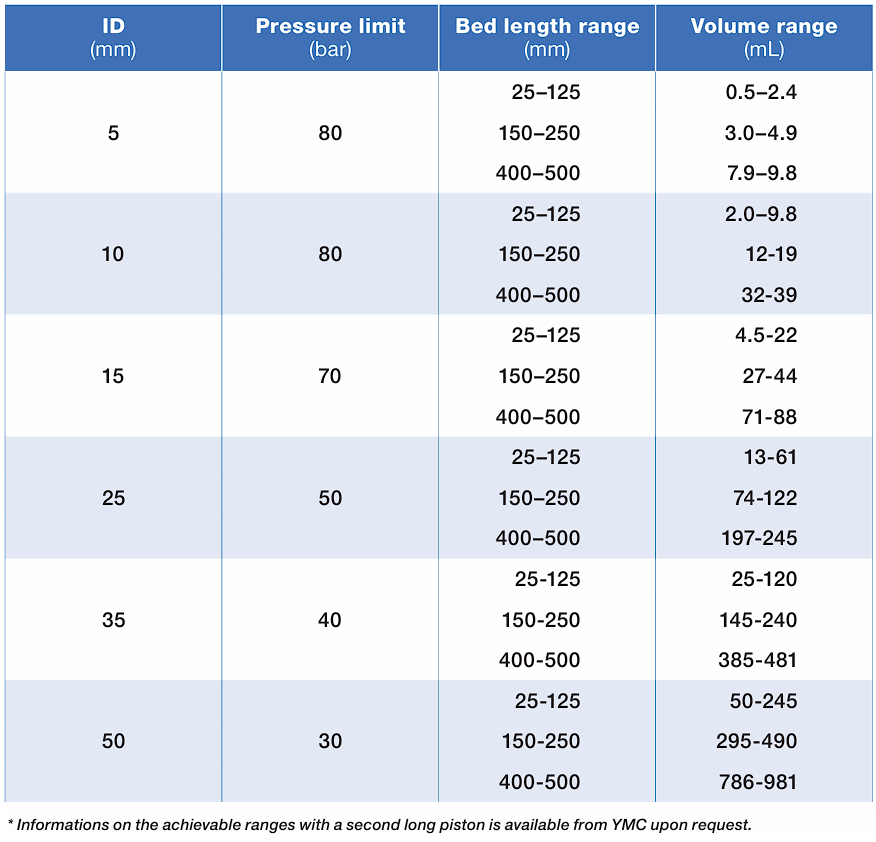

-內徑提供多種選擇：5, 10, 15, 25, 35, 50mm
-玻璃管柱長度：125, 250, 500 mm，填充長度可自由調整，
-生物相容(Biocompatible)
-操作簡單，並可於低溫環境下操作
-可選配夾套進行溫度控制，說明
-篩版(Frit)材質可選擇，並固定在柱塞內，避免使用濾網(Nets)可能在調整柱塞時脫落
-管線可自由隨時更換，不須卸除樹脂

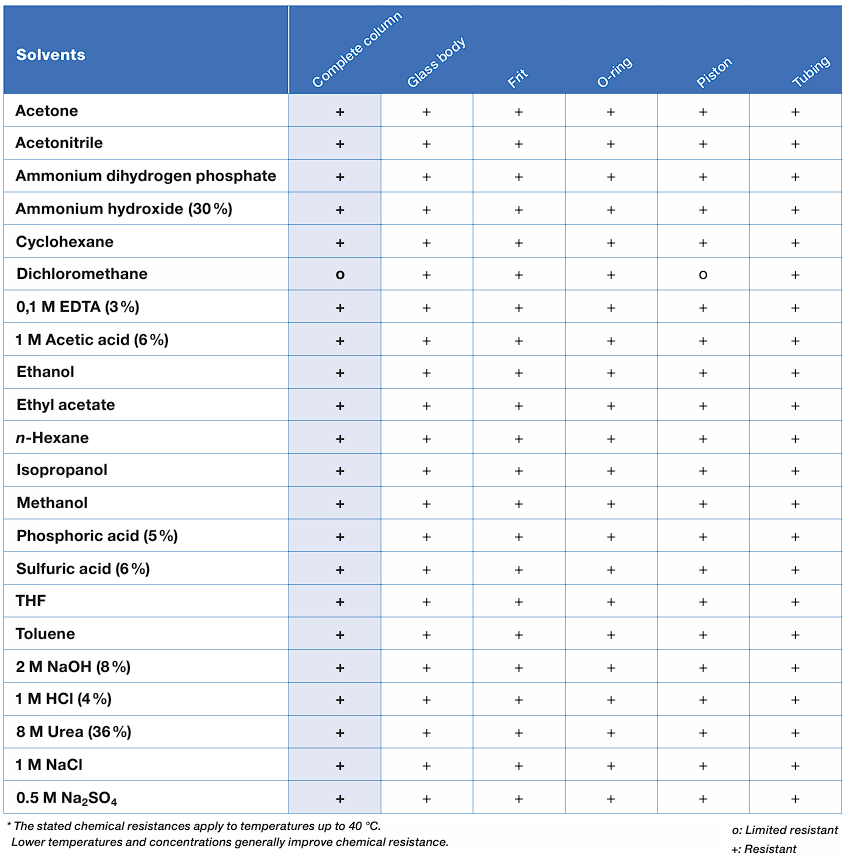

-接液材質化學耐受性佳，並可接受客製化材質訂製(價格實惠)
*接受少量試用申請中
影片介紹

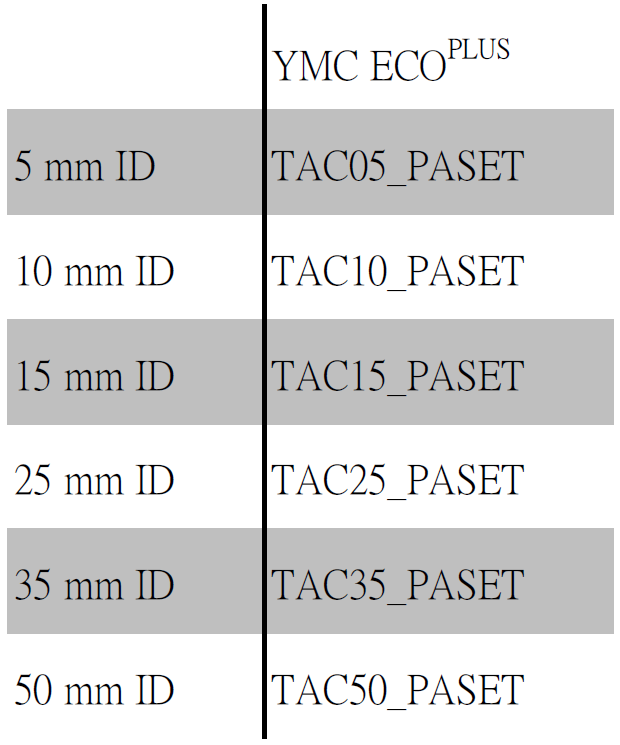

Packing Adapters
Packing adapters are used if the packing method required additional column volume during the packing process. The ECOPLUS series packing adapters consist of a column coupler and an empty glass body. These must be of the same diameter as the column to be packed and must be used as packing adapters, not for extending the length of a column body during use.
Easy Connection of YMC Glass Columns to Äkta systems
YMC have specifically designed an adapter to allow easy connection of YMC glass columns to Äkta systems. This adapter will allow direct connection of the 10-32 fittings of the Äkta systems to the inlets and outlets of YMC glass columns. This adapter is compatible to all existing YMC glass columns with internal diameters between 10 to 50 mm.
The part number for one set is JR-0636-PCTFE/P2.
| Title | Document Type | Download |
|---|---|---|
| ECOplus Glass Column Overview | Brochure | Download |
| Packing a 10 mm ID column with BioPro IEX SmartSep S30 | Expert Tip | Download |
| Glass Column Packing Service by YMC | Flyer | Download |
| Optimum Column Positioning with ECO Column Stands! | Flyer | Download |
| Manual ECOPlus Glass Columns | Manual | 請聯繫我們索取資料 |
| Manual Handling-Loop for YMC Glass Columns | Manual | 請聯繫我們索取資料 |
| Step-by-Step Guide to Packing Lab Scale Glass Columns | Manual | 請聯繫我們索取資料 |
| YMC Glass Columns for Lab and Pilot Scale | Overview | Download |
| How to pack a glass column with soft gels | Poster | Download |
| Handling-Loop for YMC Glass Columns | Product Information | Download |
| Questionnaire for YMC Glass Columns (Lab and Pilot Scale) | Questionnaire | Download |
| Glass columns as fixed bed reactors for immobilised enzymes | Technical Note | Download |
| Purification of gelatine using glass columns | Technical Note | Download |
| Cleaning and Cleaning Validation of Glass Columns Laboratory and Pilot Scale | Whitepaper | 請聯繫我們索取資料 |
| YMC_Isomerpurification_with_glass_column_0821 | Technical Note | Download |
