YMC-Triart C18 逆相層析管柱
YMC-Triart C18液相層析管柱採用有機雜化矽膠(hybrid silica-based)為基質，提升耐用性、低操作壓力及出色的分離能力，可在廣泛之pH值和溫度範圍下操作。C18官能基的密度經過最佳化修飾，可實現適度的疏水性和氫鍵鍵合，因此可作為各種樣品分離首選之層析管柱，即使在100％的水流動相條件下也可獲得良好的保留和再現性。
| SPECIFICATION | |
| Base | organic/inorganic hybrid silica |
|---|---|
| Particle size | 1.9 μm, 3 μm, 5 μm |
| Pore size | 12 nm |
| Carbon contents | 20% |
| Usable pH range | 1-12 |
| USP | L1 |
技術資料
提供方法開發上管柱之靈活運用性-YMC-Triart C18 可應用於廣泛之pH範圍以及可於高溫下操作，可提供各領域LC分析專家更靈活地條件開發，最佳化待測物分離度及滯留時間。
高靈敏度之 LC/MS應用-Highly sensitive LC/MS analysis of “tetracycline antibiotics” and “triazolam and etizolam”
Analysis of peptides and proteins
Analysis of hinokitiol
Analysis of organic acids
Analysis of aromatic carboxylic acids
Analysis of basic drugs
Fast UHPLC analyses of small peptides, Glyphosate and AMPA. According to DIN ISO 16308.
快速UHPLC Cell Penetrating Peptides分析(Octaarginine, HIV-1 Tat Protein, Penetratin)
-Long column lifetime under harsh chemical conditions
-Effective for analysis of highly polar compounds using 100% aqueous conditions
-Minimizing strong solvent/sample loading effects
-Ideal for high-sensitivity analysis using LC/MS
-For separation of biomolecules with molecular weight of up to 30,000 using high temperature
-Long column lifetime under harsh chemical conditions

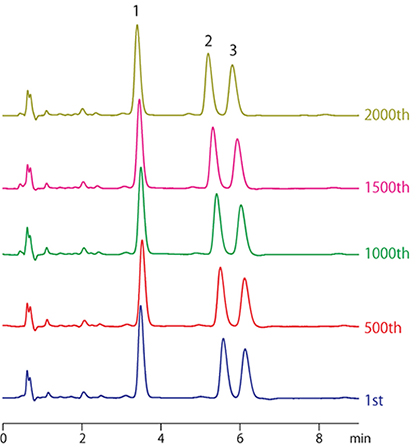

YMC-Triart C18 offers outstanding chemical and physical durability over a wide pH range at high temperatures.
As erythromycins are known to be easily degraded under acidic (pH < 6.5) conditions, higher pH is preferable. In addition, higher temperatures tend to show better peak shape. The enhanced chemical durability of Triart C18 enables highly reproducible analysis at high pH and high temperature.
| Column | YMC-Triart C18 (3 μm, 120Å), 50 X 2.0 mmI.D. |
|---|---|
| Eluent | 20 mM KH2PO4-K2HPO4 (pH 7.9)/acetonitrile/methanol (40/45/15) |
| Flow rate | 0.2 mL/min |
| Temperature | 70ºC |
| Detection | UV at 210 nm |
-Effective for analysis of highly polar compounds using 100% aqueous conditions

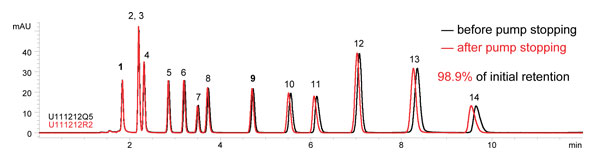

Using 100% aqueous mobile phase with conventional C18 columns generally shows poor performance (retention and peak shape) owing to low surface hydration caused by repulsion between aqueous mobile phase and the hydrophobic bonded phase. Triart C18 is designed to retain both moderate hydrogen bonding capacity and hydrophobicity on the surface by optimizing the bonding density of the C18 phase. Its versatility makes it ideal for a first choice ODS column, and is also applicable to the analysis of polar compounds under 100% aqueous mobile phase conditions.
In the experiment illustrated here, Triart C18 shows stable retention of organic acids, even after stopping the pump.
1. Oxalic acid
2. Tartaric acid
3. Glycolic acid
4. Formic acid
5. L-Malic acid
6. Malonic acid
7. Lactic acid
8. Acetic acid
9. Maleic acid
10 . Citric acid
11 . Succinic acid
12 . Fumaric acid
13 . Acrylic acid
14 . Propionic acid
| Column | YMC-Triart C18 (3 μm, 120 Å), 150 X 3.0 mmI.D. |
|---|---|
| Eluent | 20 mM H3PO4 |
| Flow rate | 0.425 mL/min |
| Temperature | 37ºC |
| Detection | UV at 220 nm |
-Minimizing strong solvent/sample loading effects
YMC-Triart C18 can tolerate larger injection volumes of samples containing solvents that have a strong eluting ability (e.g., acetonitrile), while giving better peak shapes than conventional columns. This can be important for samples pre-treated with higher concentrations of organic solvent, crude reaction samples, and samples with poor solubility.
Influence of injection volume on peak shape
| Column | 5 μm, 50 X 2.0 mmI.D. or 2.1 mmI.D. |
|---|---|
| Eluent | A) water/formic acid (100/0.1) B) acetonitrile/formic acid (100/0.1) 5%B (0-0.5 min), 5-100%B (0.5-2.5 min) |
| Flow rate | 0.4 mL/min |
| Temperature | 40ºC |
| Detection | UV at 275 nm |
-Ideal for high-sensitivity analysis using LC/MS
On the Triart C18 column, very low levels of bleeding (leaching) are achieved due to improvements of the production procedure and product stability. The background noise of Triart C18 on LC/MS (TIC) is almost the same as that of a blank run with no column. These results prove that there is little bleeding from the Triart C18 column. Very low background noise and a high S/N ratio are expected on Triart columns, even with high-sensitivity detectors.
Bleed test by LC/MS
| Column | 5 µm, 50 X 2.0 mmI.D. |
|---|---|
| Eluent | A) water/formic acid (100/0.1) B) acetonitrile/formic acid (100/0.1) 5%B (0-1 min), 5-100%B (1-5 min), 100%B (5-10 min), 100-5%B (10-10.1 min), 5%B (10.1-12.5 min) |
| Flow rate | 0.4 mL/min |
| Temperature | 40ºC |
| Detection | ESI positive, TIC (Mass Range: 50-1000) |
-For separation of biomolecules with molecular weight of up to 30,000 using high temperature
Changing the column temperature will provide selectivity change as well as peak shape improvement. YMC-Triart C18, which offers excellent durability even under an elevated temperature condition, is effective for the separation of peptides and proteins.
- Leu-Enkephalin (MW 556)
- Oxytocin (MW 1,007)
- β-Endorphin (MW 3,465)
- Insulin (MW 5,733)
- β-Lactoglobulin A (MW 18,400)
| Column | YMC-Triart C18 (1.9 μm, 120 Å), 50 X 2.0 mmI.D. |
|---|---|
| Eluent | A) water/TFA (100/0.1) B) acetonitrile/TFA (100/0.1) 10-80%B (0-5 min) |
| Flow rate | 0.4 mL/min |
| Detection | 220 nm |
| Application | Columns | Compound name | |
|---|---|---|---|
| 7 THC Related Compounds on YMC-Triart C18 | YMC-Triart C18 | Cannabidiolic acid Cannabigerol Cannabidiol Cannabinol Δ9-Tetrahydrocannabinol Δ8-Tetrahydrocannabinol Tetrahydrocannabinolic acid | Download |
| ATP and its related compounds in Tuna meat | YMC-Triart C18 | 5′-IMP 5′-ATP 5′-ADP 5′-AMP Hypoxanthine Inosine | Download |
| Aciclovir for syrup | YMC-Triart C18 | Aciclovir (Acyclovir) p-Hydroxybenzoic acid | Download |
| Aciclovir syrup and injection | YMC-Triart C18 | Nicotinic acid Aciclovir (Acyclovir) | Download |
| Alkaloids | YMC-Triart C18 | Scopolamine Atropine Cinchonine Quinine Dihydroquinine | Download |
| Amlodipine besilate (JP 15th Edition Supplement I) | YMC-Triart C18 | Amlodipine besilate Isobutyl p-hydroxybenzoate (Isobutyl paraben) | Download |
| Amlodipine besilate (JP draft|Related substances) | YMC-Triart C18 | Amlodipine besilate | Download |
| Amlodipine besilate orally disintegrating tablets (JP draft|Assay) | YMC-Triart C18 | Amlodipine besilate | Download |
| Antifungal agents included in a shampoo | YMC-Triart C18 | Hinokitiol Ciclopirox olamine Piroctone olamine (Octopirox) | Download |
| Antimicrobial peptides | YMC-Triart C18 | α-Defensin-1(human) (MW 3442) α-Defensin-2(human) (MW 3371) α-Defensin-3(human) (MW 3486) | Download |
| Aromatic carboxylic acids | YMC-Triart C18 | Salicylic acid Methyl p-hydroxybenzoate (Methyl paraben) trans-Cinnamic acid | Download |
| Barbiturates in human serum | YMC-Triart C18 | Barbital Phenobarbital Hexobarbital Pentobarbital Secobarbital | Download |
| Barbiturates | YMC-Triart C18 | Barbital Phenobarbital Hexobarbital Pentobarbital Secobarbital | Download |
| Basic drugs | YMC-Triart C18 | Chlorpheniramine Dextromethorphan Propyl p-hydroxybenzoate (Propyl paraben) | Download |
| Benzodiazepine derivatives (Triazolam, Etizolam) – LC/MS | YMC-Triart C18 | Triazolam Etizolam | Download |
| Bipyridinium herbicides (diquat, paraquat) – LC/MS | YMC-Triart C18 | Diquat Paraquat | Download |
| Bipyridinium herbicides (diquat, paraquat) | YMC-Triart C18 | Diquat Paraquat | Download |
| Butenafine hydrochloride | YMC-Triart C18 | Butenafine hydrochloride | Download |
| Carvedilol tablets (JP 16th|Assay) | YMC-Triart C18 | Carvedilol Isoamyl p-hydroxybenzoate (I.S.) | Download |
| Carvedilol tablets (JP 16th|Related substances) | YMC-Triart C18 | Carvedilol | Download |
| Clindamycin hydrochloride (The Japanese Pharmacopoeia 15th Edition Supplement II) | YMC-Triart C18 | Clindamycin hydrochloride | Download |
| Clindamycin hydrochloride (The United States Pharmacopoeia) | YMC-Triart C18 | Lincomycin hydrochloride Clindamycin hydrochloride | Download |
| Clopidogrel and related compounds | YMC-Triart C18 | Clopidogrel carboxylic acid Clopidogrel sulphate Clopidogrel related compound B | Download |
| Donepezil hydrochloride (USP 37th) | YMC-Triart C18 | Donepezil hydrochloride | Download |
| Donepezil hydrochloride tablets (USP 37th) | YMC-Triart C18 | Donepezil hydrochloride | Download |
| Erythromycin antibiotic drugs | YMC-Triart C18 | Erythromycin Erythromycin ethylsuccinate Erythromycin estolate | Download |
| Fexofenadine Hydrochloride Tablets | YMC-Triart C18 | Fexofenadine hydrochloride | Download |
| Flavonoids | YMC-Triart C18 | Daidzein Luteolin Kaempferol Baicalein | Download |
| Glimepiride Tablets | YMC-Triart C18 | Glimepiride | Download |
| Glutathione and related compounds | YMC-Triart C18 | L-Cysteine L-Cystine Glutathione (GSH) Glutathione disulfide (GSSG) | Download |
| Hinokitiol | YMC-Triart C18 | Hinokitiol Methyl benzoate | Download |
| L-Isoleucine L-Leucine and L-Valine granules | YMC-Triart C18 | L-Valine L-Isoleucine L-Leucine | Download |
| LC/MS analysis of oligonucleotides (siRNA) | YMC-Triart C18 | 5′-GU ACG CGG AAU ACU UCG AdTdT-3′ (20 nt) 5′-CGU ACG CGG AAU ACU UCG AdTdT-3′ (21 nt) | Download |
| LC/MS analysis of oligonucleotides (miRNA) | YMC-Triart C18 | 5′-pUGG AGU GUG ACA AUG GUG UUG-3′ (21 nt) 5′-pUGG AGU GUG ACA AUG GUG UUG U-3′ (22 nt) | Download |
| LC/MS analysis of tetracycline antibiotics | YMC-Triart C18 | Oxytetracycline Tetracycline Chlortetracycline Doxycycline | Download |
| Lamivudine | YMC-Triart C18 | Lamivudine | Download |
| Losartan potassium (JP 16th|Assay) | YMC-Triart C18 | Losartan potassium | Download |
| Losartan potassium (JP 16th|Related substances) | YMC-Triart C18 | Losartan potassium | Download |
| Losartan potassium (USP 34th| Assay) | YMC-Triart C18 | Losartan potassium | Download |
| Losartan potassium (USP 34th| Chromatographic purity) | YMC-Triart C18 | Losartan potassium Triphenylmethanol | Download |
| Naftopidil tablets | YMC-Triart C18 | Naftopidil 1-Naphthol (I.S.) | Download |
| Nicotine and related compounds | YMC-Triart C18 | Anabasine hydrochloride Cotinine Nicotine | Download |
| Nucleic acid bases | YMC-Triart C18 | Cytosine Uracil Guanine Thymine Adenine | Download |
| Nucleotides | YMC-Triart C18 | 5′-CMP 5′-UMP 5′-GMP 5′-IMP 5′-TMP 5′-AMP | Download |
| Oligonucleotides, d(T)2-20 | YMC-Triart C18 | Oligodeoxythymidylic acid [d(T)2-20] | Download |
| Organic acids | YMC-Triart C18 | Oxalic acid Tartaric acid Glycolic acid Formic acid L-Malic acid Malonic acid Lactic acid Acetic acid Maleic acid Citric acid Succinic acid Fumaric acid Acrylic acid Propionic acid | Download |
| Orotic acid | YMC-Triart C18 | 5-Fluoroorotic acid Uracil Orotic acid | Download |
| Paeoniflorin (JP 16th|Assay) | YMC-Triart C18 | Albiflorin Paeoniflorin | Download |
| Paeoniflorin in Kampo products (JP 16th|Assay) | YMC-Triart C18 | Albiflorin Paeoniflorin | Download |
| Pesticides used on golf course – method transfer from HPLC to UHPLC | YMC-Triart C18 | Oxine-copper (Copper 8-quinolinolate) Asulam Thiram Triclopyr Mecoprop Flazasulfuron Siduron Halosulfuron-methyl Azoxystrobin | Download |
| Pioglitazone hydrochloride tablets | YMC-Triart C18 | Pioglitazone hydrochloride Benzophenone | Download |
| Pioglitazone hydrochloride | YMC-Triart C18 | Pioglitazone hydrochloride Benzophenone | Download |
| Risperidone (JP 16th|Related substances) | YMC-Triart C18 | Risperidone | Download |
| Risperidone Tablets and Fine Granules (JP 16th|Dissolution) | YMC-Triart C18 | Risperidone | Download |
| Simultaneous separation of haloacetic acids by LC/MS | YMC-Triart C18 | Monochloroacetic acid Dichloroacetic acid Trichloroacetic acid | Download |
| Simvastatin (JP 16th| Assay) | YMC-Triart C18 | Simvastatin Lovastatin | Download |
| Simvastatin (USP 34th| Assay) | YMC-Triart C18 | Simvastatin Lovastatin | Download |
| Simvastatin tablets (JP draft) | YMC-Triart C18 | Simvastatin | Download |
| Simvastatin tablets (USP 34th| Assay) | YMC-Triart C18 | Simvastatin | Download |
| Soy isoflavones in supplement | YMC-Triart C18 | Daidzin Glycitin Genistin 6”-O-Malonyldaidzin 6”-O-Malonylglycitin 6”-O-Acetyldaidzin 6”-O-Acetylglycitin 6”-O-Malonylgenistin Daidzein Glycitein 6”-O-Acetylgenistin Genistein (Isoflavones) | Download |
| Soy isoflavones | YMC-Triart C18 | Daidzin Glycitin Genistin 6”-O-Malonyldaidzin 6”-O-Malonylglycitin 6”-O-Acetyldaidzin 6”-O-Acetylglycitin 6”-O-Malonylgenistin Daidzein Glycitein 6”-O-Acetylgenistin Genistein (Isoflavones) | Download |
| Tacrolimus capsules | YMC-Triart C18 | Tacrolimus Tacrolimus 19-epimer | Download |
| Tacrolimus hydrate (JP 16th| Assay) | YMC-Triart C18 | Tacrolimus hydrate Heptyl p-hydroxybenzoate (I.S.) | Download |
| Tacrolimus | YMC-Triart C18 | Tacrolimus | Download |
| Telmisartan (JP draft) | YMC-Triart C18 | Telmisartan | Download |
| Valsartan, Valsartan tablets | YMC-Triart C18 | Valsartan Valsartan enantiomer (Valsartan related compound A) | Download |
| Valsartan | YMC-Triart C18 | Valsartan | Download |
| Water-soluble vitamins | YMC-Triart C18 | L-Ascorbic acid 2-glucoside L-Ascorbic acid (Vitamin C) Erythorbic acid (D-Isoascorbic acid) Nicotinic acid Nicotinamide D-(+)-Pantothenic acid calcium salt Pyridoxal hydrochloride (Vitamin B6) Pyridoxine HCl (Vitamin B6) Folic acid Thiamine HCl (Vitamin B1) Cyanocobalamin (Vitamin B12) D-Biotin (Vitamin H) Riboflavin (Vitamin B2) | Download |
Care and Use Manual
Product Information
Technical Note
-Reversed-Phase Method Development Strategy
-Use of Meteoric Core and YMC-Triart for an Improved USP Chlorhexidine Gluconate Assay Method(請聯繫我們索取資料)
-YMC Expert Tip – Issues with basic analytes
Application Note
Analytical Columns (Max. pressure : 100 MPa for 1.9 um, 45 MPa for 3 um and 5 um)
| Particle size (µm) |
Pore size (Å) |
Column size Inner diameter X length (mm) |
Product Number |
|---|---|---|---|
| 1.9 | 120 | 2.0 X 20 | TA12SP9-0202PT |
| 2.0 X 30 | TA12SP9-0302PT | ||
| 2.0 X 50 | TA12SP9-0502PT | ||
| 2.0 X 75 | TA12SP9-L502PT | ||
| 2.0 X 100 | TA12SP9-1002PT | ||
| 2.0 X 150 | TA12SP9-1502PT | ||
| 2.1 X 20 | TA12SP9-02Q1PT | ||
| 2.1 X 30 | TA12SP9-03Q1PT | ||
| 2.1 X 50 | TA12SP9-05Q1PT | ||
| 2.1 X 75 | TA12SP9-L5Q1PT | ||
| 2.1 X 100 | TA12SP9-10Q1PT | ||
| 2.1 X 150 | TA12SP9-15Q1PT | ||
| 3.0 X 50 | TA12SP9-0503PT | ||
| 3.0 X 75 | TA12SP9-L503PT | ||
| 3.0 X 100 | TA12SP9-1003PT | ||
| 3.0 X 150 | TA12SP9-1503PT | ||
| 3 | 120 | 2.1 X 20 | TA12S03-02Q1PTH |
| 2.1 X 33 | TA12S03-H3Q1PTH | ||
| 2.1 X 50 | TA12S03-05Q1PTH | ||
| 2.1 X 75 | TA12S03-L5Q1PTH | ||
| 2.1 X 100 | TA12S03-10Q1PTH | ||
| 2.1 X 150 | TA12S03-15Q1PTH | ||
| 3.0 X 50 | TA12S03-0503PTH | ||
| 3.0 X 75 | TA12S03-L503PTH | ||
| 3.0 X 100 | TA12S03-1003PTH | ||
| 3.0 X 150 | TA12S03-1503PTH | ||
| 4.6 X 33 | TA12S03-H346PTH | ||
| 4.6 X 50 | TA12S03-0546PTH | ||
| 4.6 X 75 | TA12S03-L546PTH | ||
| 4.6 X 100 | TA12S03-1046PTH | ||
| 4.6 X 150 | TA12S03-1546PTH | ||
| 4.6 X 250 | TA12S03-2546PTH | ||
| 5 | 120 | 2.1 X 20 | TA12S05-02Q1PTH |
| 2.1 X 33 | TA12S05-H3Q1PTH | ||
| 2.1 X 50 | TA12S05-05Q1PTH | ||
| 2.1 X 75 | TA12S05-L5Q1PTH | ||
| 2.1 X 100 | TA12S05-10Q1PTH | ||
| 2.1 X 150 | TA12S05-15Q1PTH | ||
| 3.0 X 50 | TA12S05-0503PTH | ||
| 3.0 X 75 | TA12S05-L503PTH | ||
| 3.0 X 100 | TA12S05-1003PTH | ||
| 3.0 X 150 | TA12S05-1503PTH | ||
| 4.0 X 150 | TA12S05-1504PTH | ||
| 4.0 X 250 | TA12S05-2504PTH | ||
| 4.6 X 33 | TA12S05-H346PTH | ||
| 4.6 X 50 | TA12S05-0546PTH | ||
| 4.6 X 75 | TA12S05-L546PTH | ||
| 4.6 X 100 | TA12S05-1046PTH | ||
| 4.6 X 150 | TA12S05-1546PTH | ||
| 4.6 X 250 | TA12S05-2546PTH |
Analytical Columns (Max. pressure : 10-25 MPa, depending on dimensions)
| Particle size (µm) |
Pore size (Å) |
Column size Inner diameter X length (mm) |
Product Number |
|---|---|---|---|
| 3 | 120 | 2.0 X 20 | TA12S03-0202WT |
| 2.0 X 30 | TA12S03-0302WT | ||
| 2.0 X 50 | TA12S03-0502WT | ||
| 2.0 X 75 | TA12S03-L502WT | ||
| 2.0 X 100 | TA12S03-1002WT | ||
| 2.0 X 150 | TA12S03-1502WT | ||
| 3.0 X 50 | TA12S03-0503WT | ||
| 3.0 X 75 | TA12S03-L503WT | ||
| 3.0 X 100 | TA12S03-1003WT | ||
| 3.0 X 150 | TA12S03-1503WT | ||
| 4.6 X 35 | TA12S03-H546WT | ||
| 4.6 X 50 | TA12S03-0546WT | ||
| 4.6 X 75 | TA12S03-L546WT | ||
| 4.6 X 100 | TA12S03-1046WT | ||
| 4.6 X 150 | TA12S03-1546WT | ||
| 4.6 X 250 | TA12S03-2546WT | ||
| 5 | 120 | 2.0 X 20 | TA12S05-0202WT |
| 2.0 X 30 | TA12S05-0302WT | ||
| 2.0 X 50 | TA12S05-0502WT | ||
| 2.0 X 75 | TA12S05-L502WT | ||
| 2.0 X 100 | TA12S05-1002WT | ||
| 2.0 X 150 | TA12S05-1502WT | ||
| 3.0 X 50 | TA12S05-0503WT | ||
| 3.0 X 75 | TA12S05-L503WT | ||
| 3.0 X 100 | TA12S05-1003WT | ||
| 3.0 X 125 | TA12S05-R503WT | ||
| 3.0 X 150 | TA12S05-1503WT | ||
| 4.0 X 125 | TA12S05-R504WT | ||
| 4.0 X 150 | TA12S05-1504WT | ||
| 4.0 X 250 | TA12S05-2504WT | ||
| 4.6 X 35 | TA12S05-H546WT | ||
| 4.6 X 50 | TA12S05-0546WT | ||
| 4.6 X 75 | TA12S05-L546WT | ||
| 4.6 X 100 | TA12S05-1046WT | ||
| 4.6 X 150 | TA12S05-1546WT | ||
| 4.6 X 250 | TA12S05-2546WT | ||
| 6.0 X 150 | TA12S05-1506WT | ||
| 6.0 X 250 | TA12S05-2506WT |
Semi-preparative columns
| Particle size (µm) |
Pore size (Å) |
Column size Inner diameter X length (mm) |
Product Number |
|---|---|---|---|
| 5 | 120 | 10 X 150 | TA12S05-1510WT |
| 10 X 250 | TA12S05-2510WT |
High durability semi-preparative columns (YMC-Actus Triart C18)
| Particle size (µm) |
Pore size (Å) |
Column size Inner diameter X length (mm) |
Product Number |
|---|---|---|---|
| 5 | 120 | 20 X 50 | TA12S05-0520WX |
| 20 X 100 | TA12S05-1020WX | ||
| 20 X 150 | TA12S05-1520WX | ||
| 20 X 250 | TA12S05-2520WX | ||
| 30 X 50 | TA12S05-0530WX | ||
| 30 X 75 | TA12S05-L530WX | ||
| 30 X 100 | TA12S05-1030WX | ||
| 30 X 150 | TA12S05-1530WX | ||
| 30 X 250 | TA12S05-2530WX | ||
| 50 X 250 | TA12S05-2553AX |
EXP®Guard Cartridge Columns (Max. pressure: 100 MPa, 3/pack)
| Particle size (µm) |
Pore size (Å) |
Column size Inner diameter X length (mm) |
Product Number |
|---|---|---|---|
| 1.9 | 120 | 2.1 X 5 | TA12SP9-E5Q1CC |
| 3.0 X 5 | TA12SP9-E503CC |
*When using it for the first time, please purchase the EXP®Guard Cartridge Holder.
*EXP is a registered trademark of Optimize Technologies, Inc.
Guard Cartridge Columns
| Particle size (µm) |
Pore size (Å) |
Column size Inner diameter X length (mm) |
/pack | Product Number |
|---|---|---|---|---|
| 3 | 120 | 2.1 X 10 | 5 | TA12S03-01Q1GC |
| 1 | TA12S03-01Q1GC-1 | |||
| 2.1 X 20 | 5 | TA12S03-02Q1GC | ||
| 1 | TA12S03-02Q1GC-1 | |||
| 3.0 X 10 | 5 | TA12S03-0103GC | ||
| 1 | TA12S03-0103GC-1 | |||
| 3.0 X 20 | 5 | TA12S03-0203GC | ||
| 1 | TA12S03-0203GC-1 | |||
| 4.0 X 10 | 5 | TA12S03-0104GC | ||
| 1 | TA12S03-0104GC-1 | |||
| 4.0 X 20 | 5 | TA12S03-0204GC | ||
| 1 | TA12S03-0204GC-1 | |||
| 5 | 120 | 2.1 X 10 | 5 | TA12S05-01Q1GC |
| 1 | TA12S05-01Q1GC-1 | |||
| 2.1 X 20 | 5 | TA12S05-02Q1GC | ||
| 1 | TA12S05-02Q1GC-1 | |||
| 3.0 X 10 | 5 | TA12S05-0103GC | ||
| 1 | TA12S05-0103GC-1 | |||
| 3.0 X 20 | 5 | TA12S05-0203GC | ||
| 1 | TA12S05-0203GC-1 | |||
| 4.0 X 10 | 5 | TA12S05-0104GC | ||
| 1 | TA12S05-0104GC-1 | |||
| 4.0 X 20 | 5 | TA12S05-0204GC | ||
| 1 | TA12S05-0204GC-1 | |||
| 10 X 10 | 2 | TA12S05-0110CC | ||
| 20 X 10 | 2 | TA12S05-0120CCN | ||
| 30 X 10 | 2 | TA12S05-0130CCN |
*When using it for the first time, please purchase the cartridge holder corresponding to size of column.
Cartridge Holder
| Product Number | ||
|---|---|---|
| EXP®direct connect holder (Adjustable ferrule, Pressure limit: 137 MPa) (2 titanium hybrid ferrules and 1 nut included) |
XPCHUHP | |
| Cartridge holder | length: 10 mm | XPGCHP1 |
| length: 20 mm | XPGCHP2 | |
| Semi-prep Cartridge Holder | Inner diameter: 10 mm | XPCHSPW1 |
| Inner diameter: 20 mm | XPGHFSP20ID | |
| Inner diameter: 30 mm | XPGHFSP30ID | |
*EXP is a registered trademark of Optimize Technologies, Inc.
